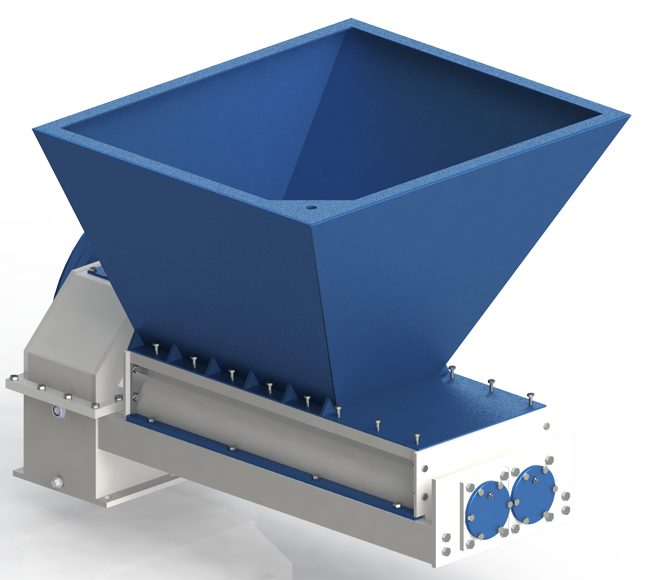

LBT-600 MIXER
DESCRIPTION
Ideal mixer for ceramic laboratories or special products such as porcelain with a production of up to 03 Tons / hour.
CONSTRUCTIVE FEATURES / DETAILS
- Bipartite reduction box with alloy steel shafts and bearings for easy maintenance.
- Main shaftsof in SAE1045 steel and knives with simple maintenance system.
- Steel sheeted chopping blades that are easy to replace.
- Lubrication of gears and bearings by oil bath.
- Protection on pulleys and trough.
* We have the option of stainless steel coverings, hammers and coil. Ideal for special ceramic pieces.
** The LBT-600 Mixer can be mounted with the LBT-140 Vacuum Extruder, forming a single set.
technical data
| Image | Model | Production | Power | Dimensions (WxHxL) | Approximate weight |
|---|---|---|---|---|---|
 | LBT-600 | Up to 03 Ton/hour | 03 hp - 1150 rpm | 630 x 790 x 1100 mm | 210 kg |
